40T Sidewall Semi Trailer

Sidewall semi trailer for sale Description：

Sidewall semi trailer for sale was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

40T sidewall trailer developed on the basis of a container flatbed trailer, the drop side trailer has a side wall structure design. The sidewall semi trailer for sale in Sekondi can be use to load the containers after adopt the contianer locks for it.

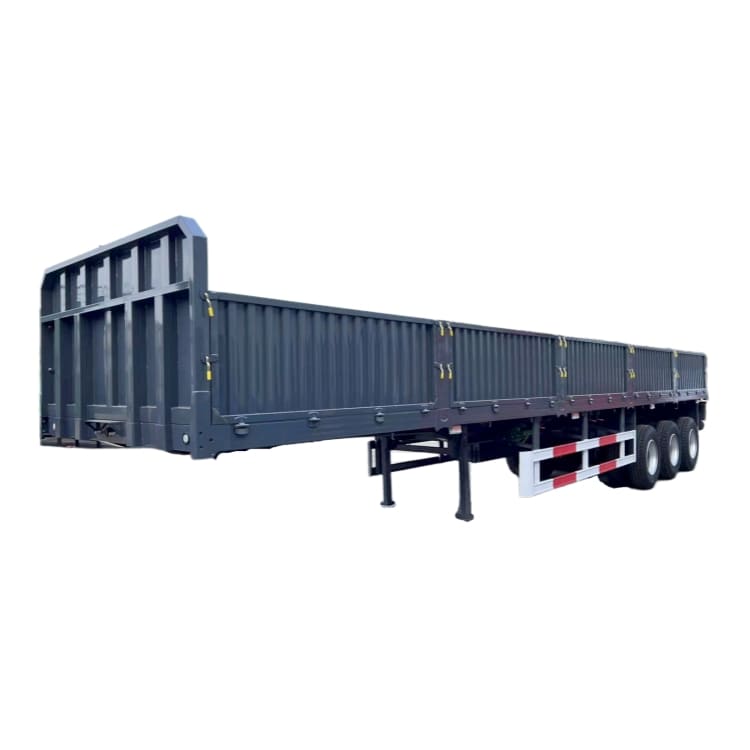

40T Sidewall Semi Trailer for Sale in Philippines General Santos

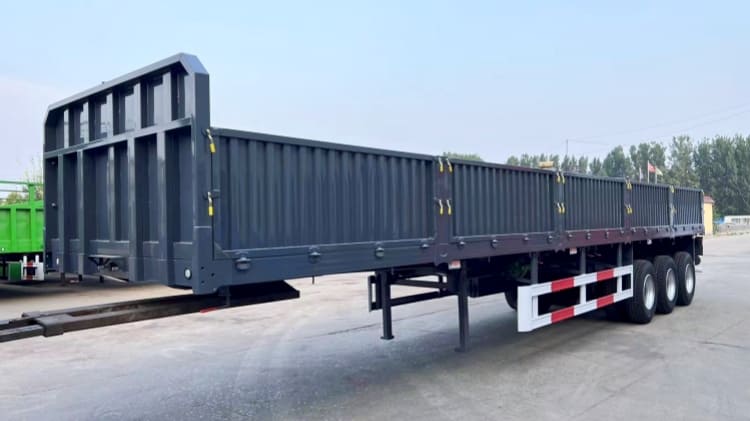

40T Sidewall Semi Trailer for Sale in Philippines General Santos

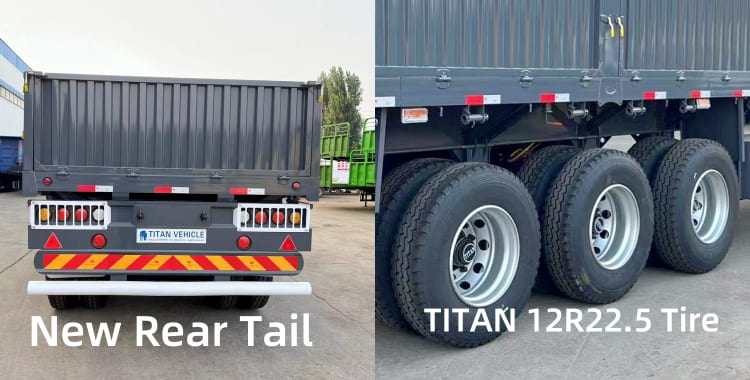

40T Sidewall Semi Trailer for Sale in Philippines General Santos

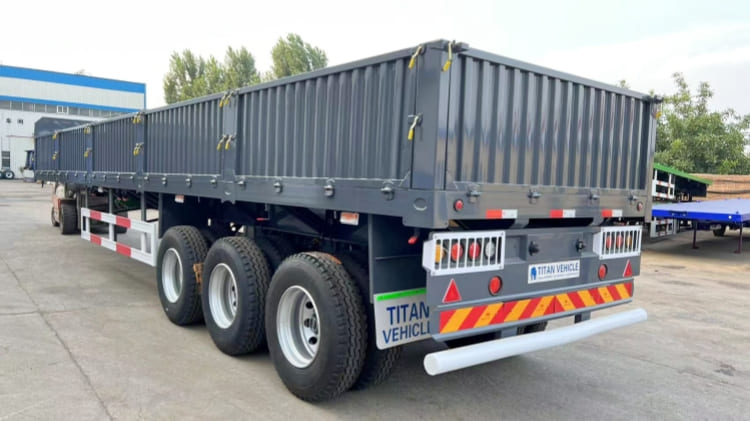

40T Sidewall Semi Trailer for Sale in Philippines General Santos

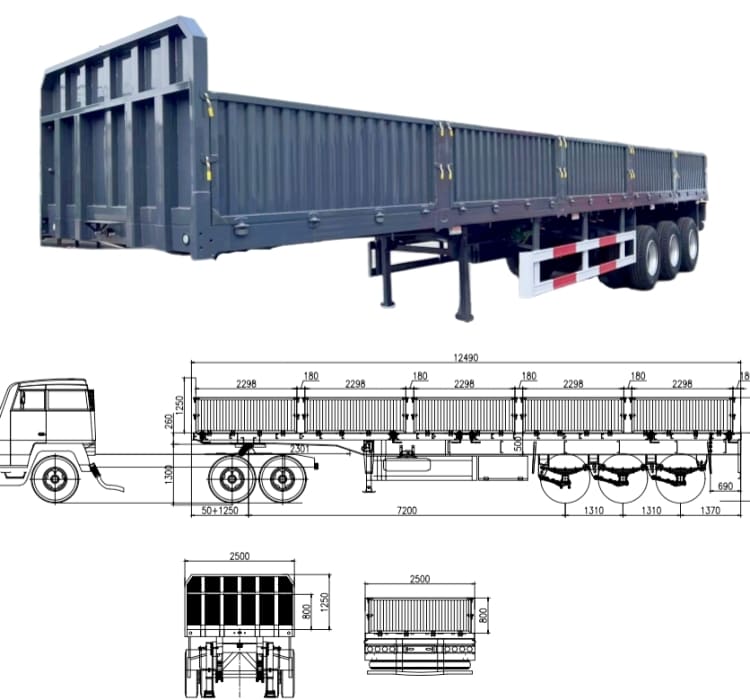

Specification of Sidewall Semi Trailer：

Dimension(mm): 12500mm*2500mm*2350mm

Trailer Sides: 600mm sidewall

Loading capacity(ton): ≤40T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Advantage of sidewall semi trailer:

1. SINOTRUKPhilippines adopts high strength steel material to manufacture the sidewall semi trailer for sale, it can make the trailer have a higher loading capacity and a longer service life.

2. To make sure the service life of the 40t sidewall semi trailers, all the spare parts we adopt are World Famous brand.

3. Trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

4. Hight Quality side wall, make sure the stable and safety of the loads.
