4 Axle Front Loading Loader Trailer

Front Loading Lowbed Trailer:

The gooseneck on SINOTRUKPhilippines front loading low loader are hydraulically driven, with automatic lifting and automatic alignment functions. It can always be easily slid into the V-shaped alignment groove included in all our front loading lowbed trailer. Our hydraulically controlled fork does not need to manually block the neck during disassembly. The heavy-duty hydraulic cylinders are made in the United States, combining power and convenience. Our increased cylinder stroke means you can raise the trailer chassis from the ground to 16"-20", depending on the fifth wheel height.

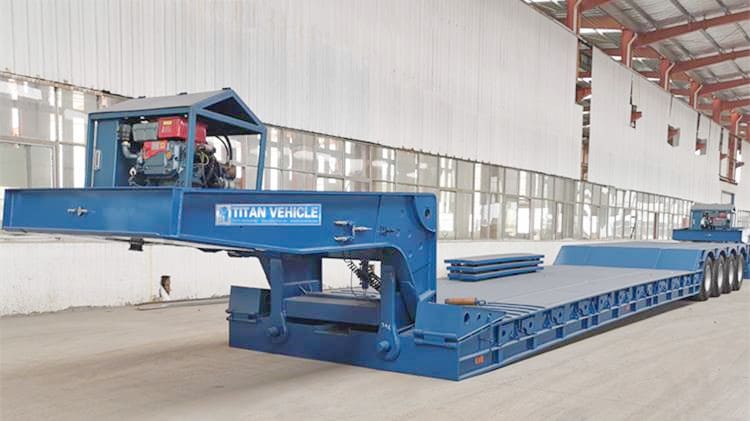

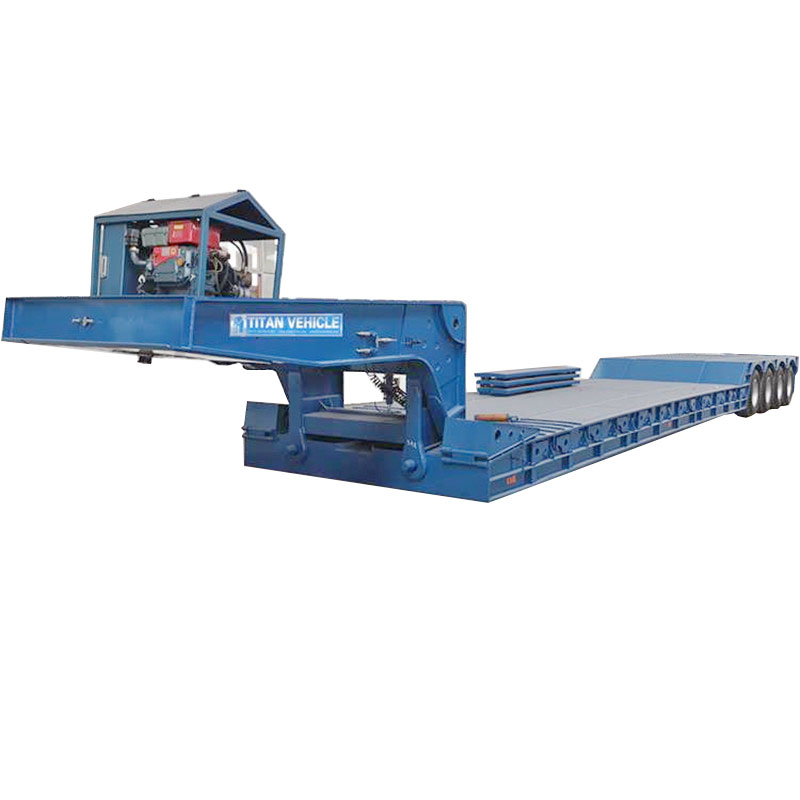

4 Axle Front Loading Lowbed Loader Trailer for Sale in Philippines

4 Axle Front Loading Lowbed Loader Trailer for Sale in Philippines

Specification of front loading low loader:

Dimension: 16500mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

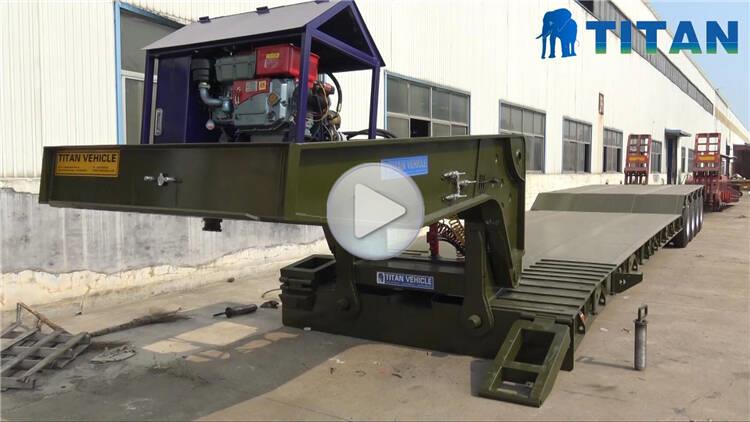

Through the video, you can know different types of front loading lowbed trailer, front loading low loader, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
