Howo 371 Dump Truck 8x4

Howo 371 Dump Truck 8x4

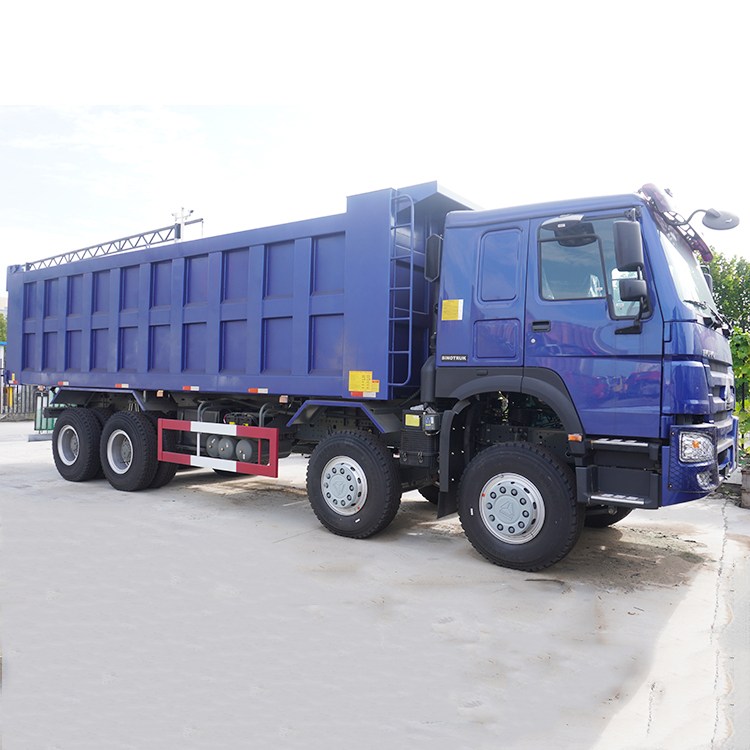

This Howo 371 dump truck 8x4 is a truck with an automatic dumping device. Also known as dump truck and engineering vehicle, it is composed of automobile chassis, hydraulic lifting mechanism, power take-off device and cargo compartment. In civil engineering, The Howo 371 dump truck 8x4 is often combined with excavators, loaders, belt conveyors, etc. to form a loading and unloading production line for the loading and unloading of earth, sand, and loose materials.

Sinotrukphilippines will provide customers the best quality of Howo 371 dump truck 8x4, the cargo of the  Howo 371 dump truck 8x4 can be customized.

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck | Howo Trucks Price Philippines | Sinotruk Howo 8x4 Dump Truck

Howo 371 Dump Truck Specification:

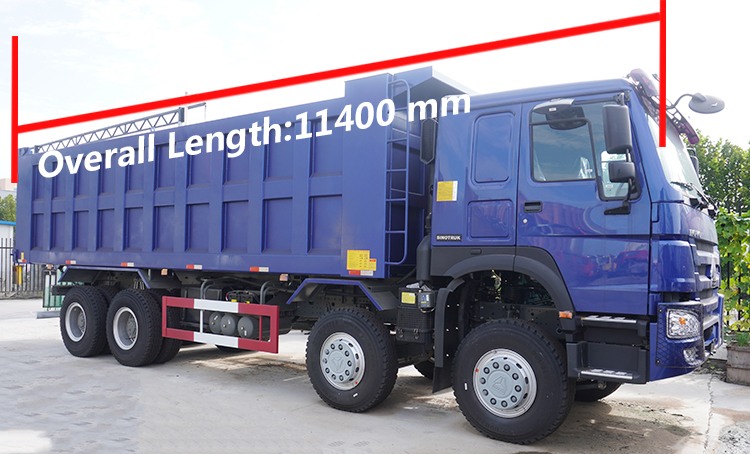

Overall Dimension: 11400*2550*3450mm

Driving Type: LHD (RHD is optional)

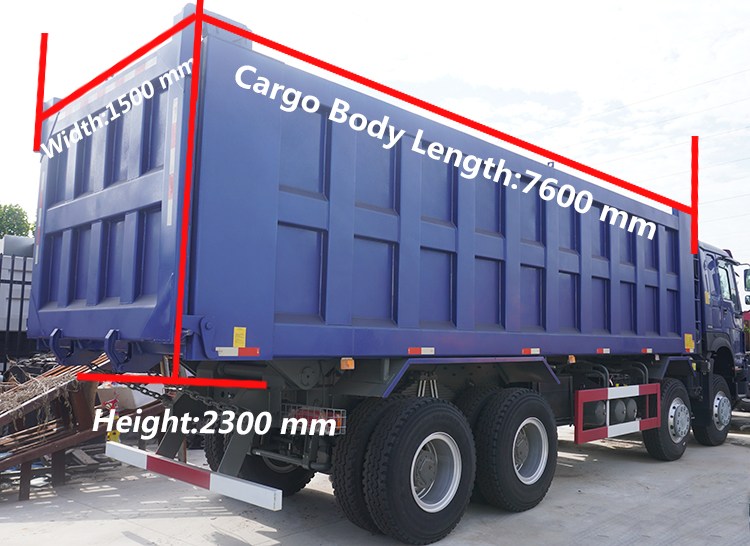

Cargo Body: 7600*2300*1500 mm, 27 CBM, Floor 8mm Side 6mm,front lifting

Cabin: HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Make: SINOTRUK

Diesel 4-stroke direct injection diesel engine

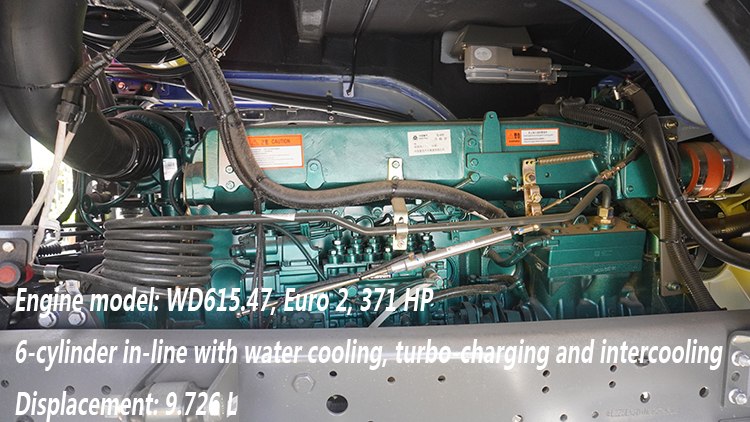

Engine model: WD615.47, Euro 2, 371 HP

6-cylinder in-line with water cooling, turbo-charging and intercooling

Displacement: 9.726 L

Transmission: HW19710, 10F & 2R, with PTO

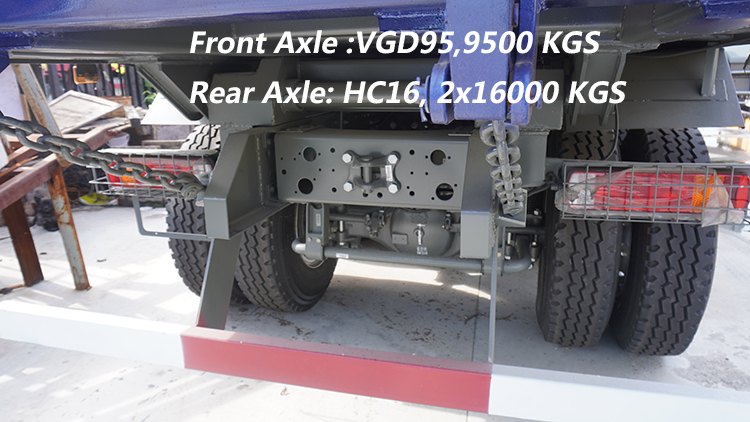

Front Axle: VGD95,9500 KGS

Rear Axle: HC16, 2x16000 KGS

Ratio:5.73

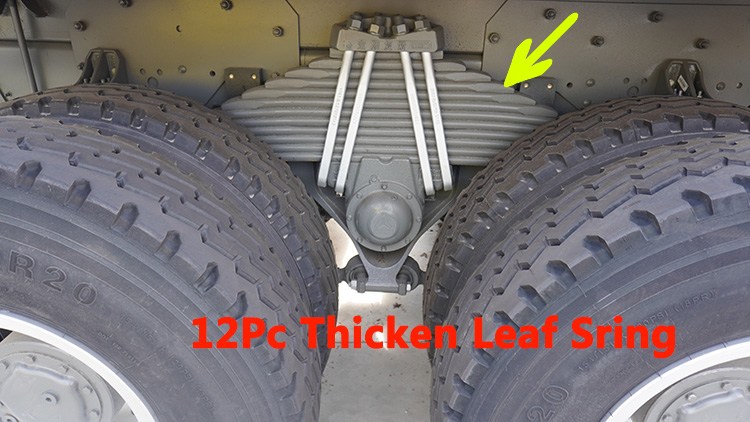

Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

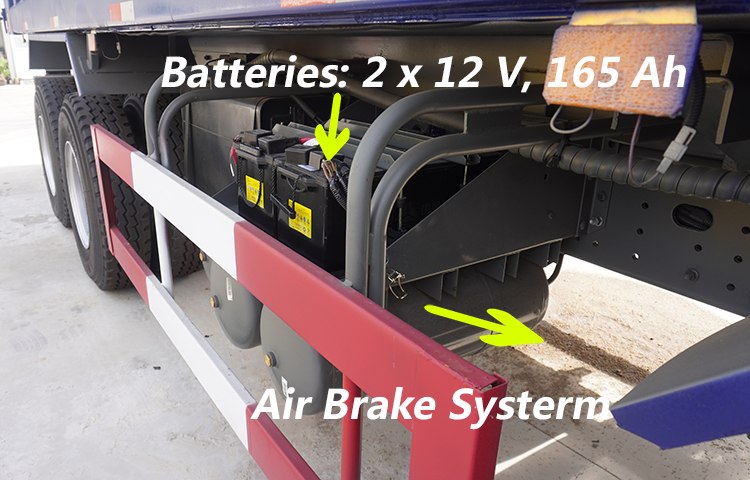

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics Operating voltage: 24 V, negative grounded

Tyres: 12.00R20, radial tyres with one spare tyre

Fuel Tank: 300L

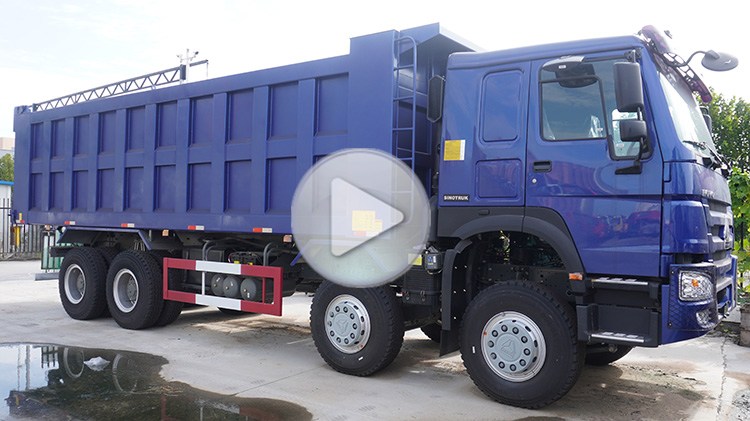

Video of  Howo 371 dump truck 8x4
