4 Axles Semi Tipper Trailer

Semi Tipper Trailer for Sale:

The new tipper trailers for sale could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design.

The sides are welding molding which increasing the loading capacity. The container tipper trailer could be used for nearly 10 years. SINOTRUKPhilippines tipper trailer has different load capacities: 24 cubics, 30 cubics, 35 cubics, 45 cubics, We can customize the tipper trailers according to your special need.

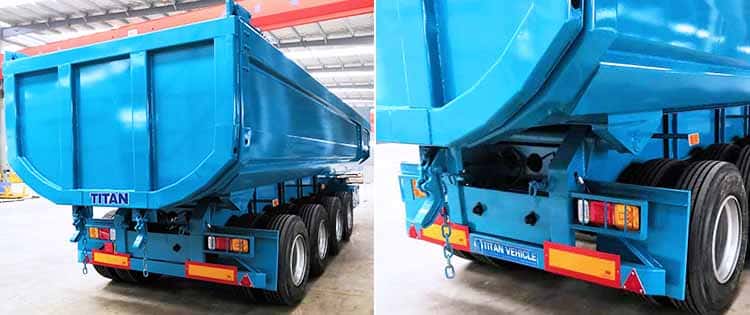

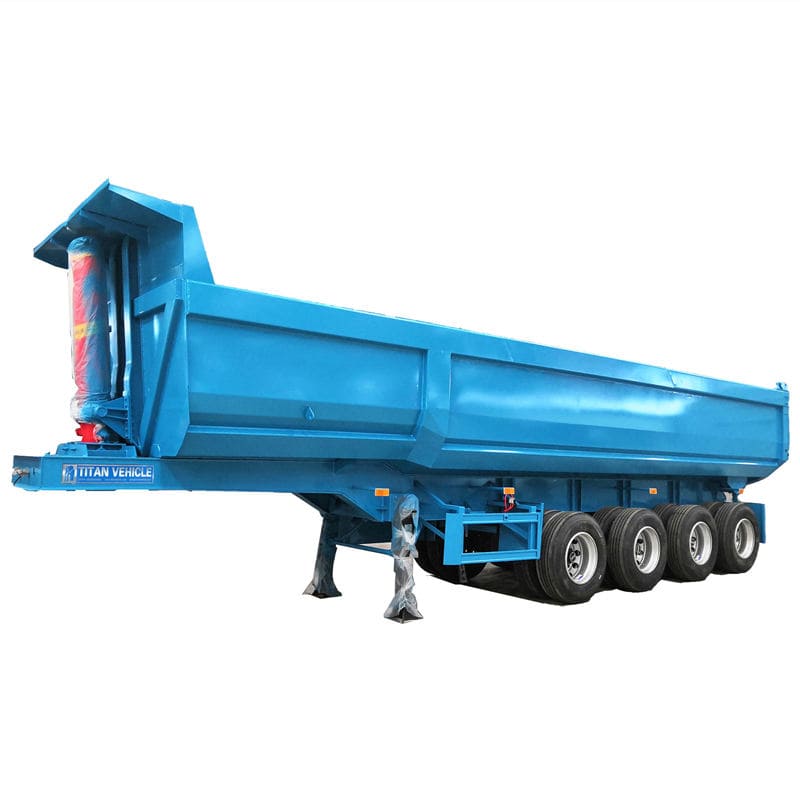

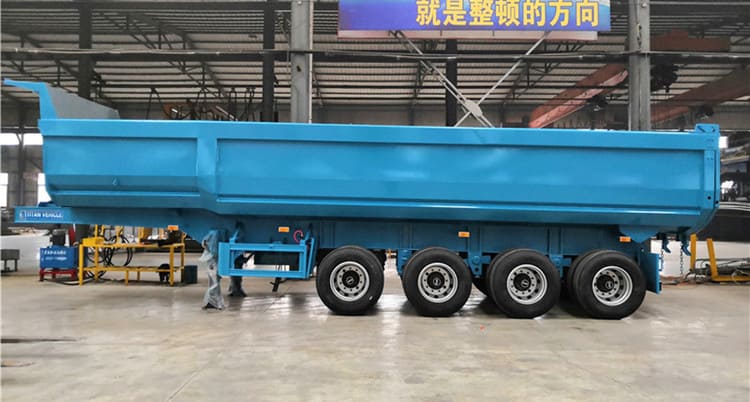

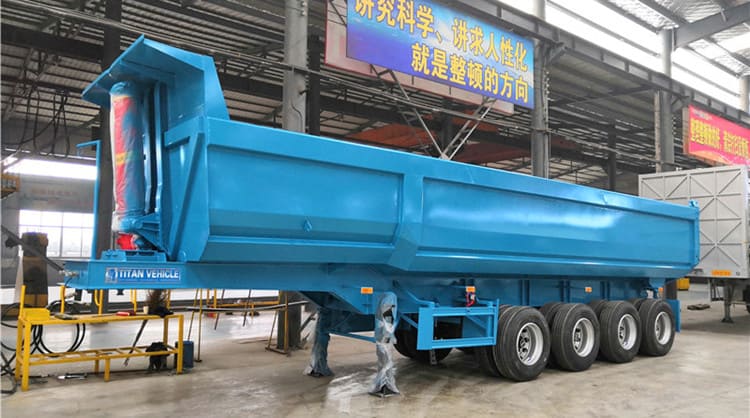

New 4 Axles Semi Tipper Trailer for Sale Manufacturers in Philippines Cebu City

New 4 Axles Semi Tipper Trailer for Sale Manufacturers in Philippines Cebu City

Specifications of tipper trailer:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Toolbox: 1 set

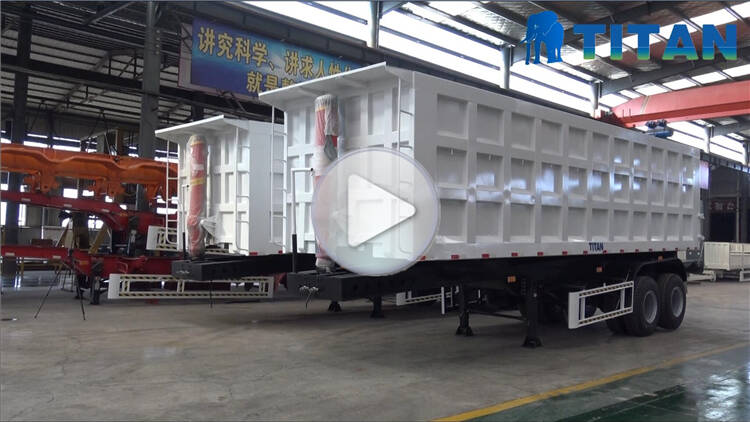

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
