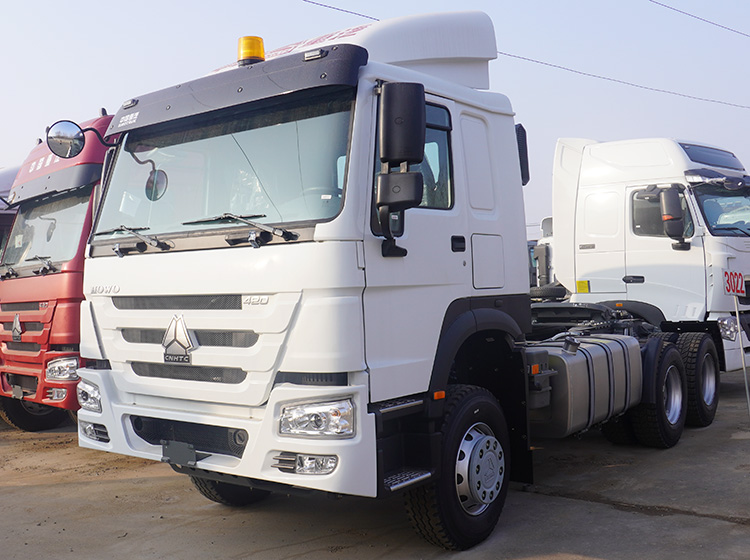

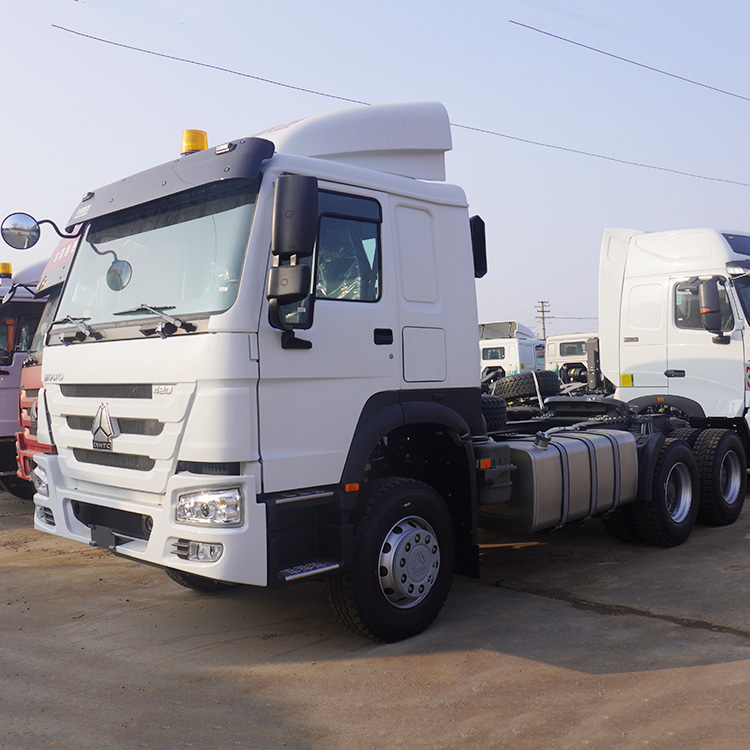

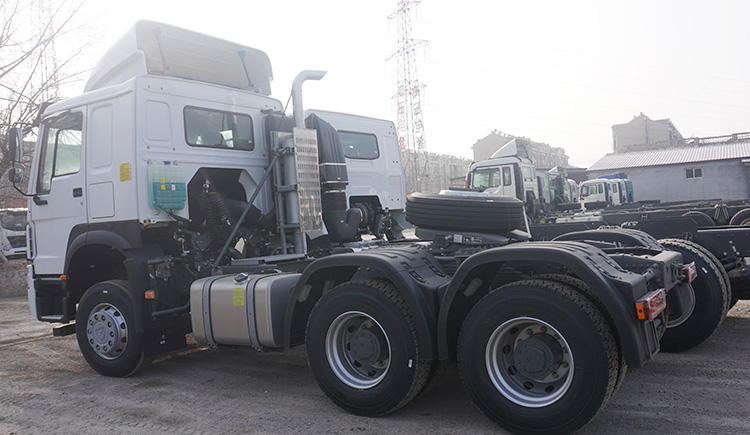

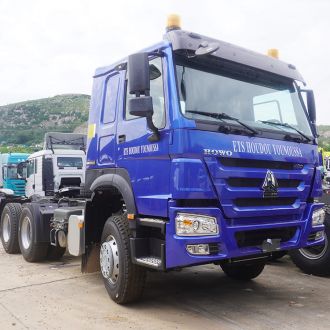

Sinotruk Howo 420 6x4 Tractor Head

Sinotruk Howo 420 6x4 Tractor Head

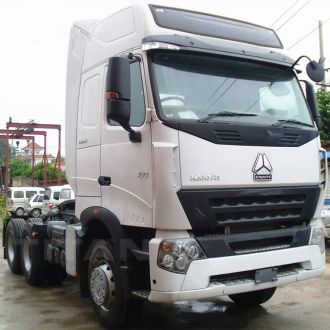

The cab of the HOWO-A7 series of heavy truck products is designed by a famous Italian design company. The appearance is stylish and atmospheric, and the interior space is spacious and comfortable. The power system is strong, the transmission system is fully optimized, and the fuel economy performance is excellent. The biggest feature of this series of models is economy, comfort, safety and reliability.

Sinotruk is a professional heavy-duty truck export company in China. It is the best and largest supplier of heavy-duty trucks. SinotrukPhilippines provides you with the best price and the best quality assurance.

Sinotruk Howo 420 6x4 | Howo Tractor Head Price for Sale Philippines

Sinotruk Howo 420 6x4 | Howo Tractor Head Price for Sale Philippines

Sinotruk Howo 420 6x4 | Howo Tractor Head Price for Sale Philippines

Sinotruk Howo 420 6x4 | Howo Tractor Head Price for Sale Philippines

Howo Tractor Head Specification:

Engine:

Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system

Maximum output: 420PS (309kW) at 2000 rpm

Maximum torque: 1820Nm at 1100-1400rpm

Bore: 126mm

Stroke: 155mm

Displacement: 11.596L

Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission:

Transmission, model HW19710, 10 forward and 2 reverse

Ratio: 4.42   4.8  5.73

Front Axle: New HF9 series, with drum brake system

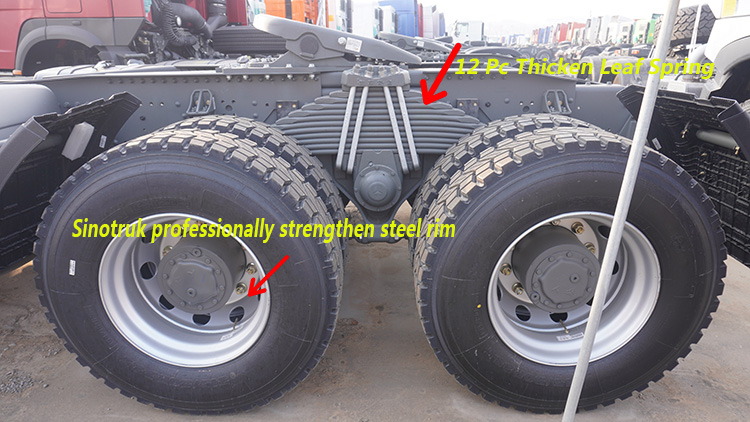

Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

Steering: ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2:1

Wheels&Tyres:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Driver'sCab: Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, 2 warming light

Dimensions inmm:

Wheel base (mm): 3200+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/725

Approach angle(°):16

Departure angle(°):70

Overall Dimension (mm): 6800x2496x2958

Weight in kg:

Rated loading capacity at fifth wheel (kg):15660

Dead weight (kg):9210

Gross vehicle weight (kg):25000

Gross combination weight（kg）：7000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

Performance Maximum driving speed(km/h):102(reference data)

Maximum gradeability (%):33

Minimum ground clearance(mm):265

Minimum turning radius (m):18.5

Fuel consumption(L/100km):40(reference data)
