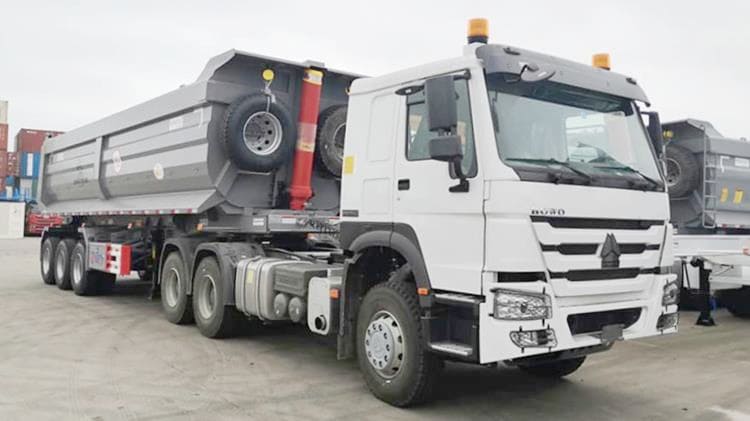

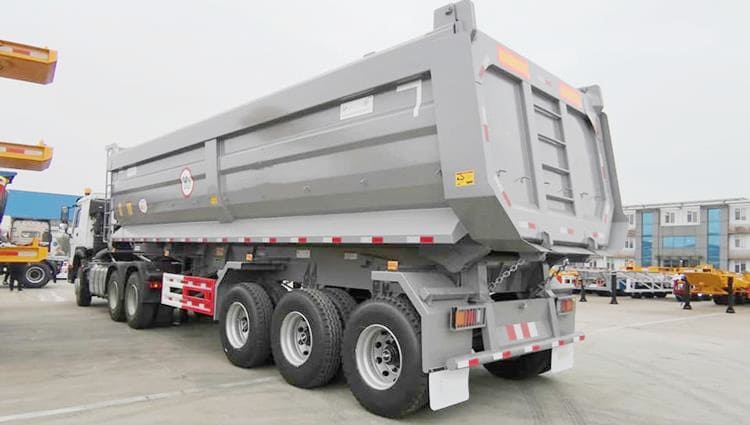

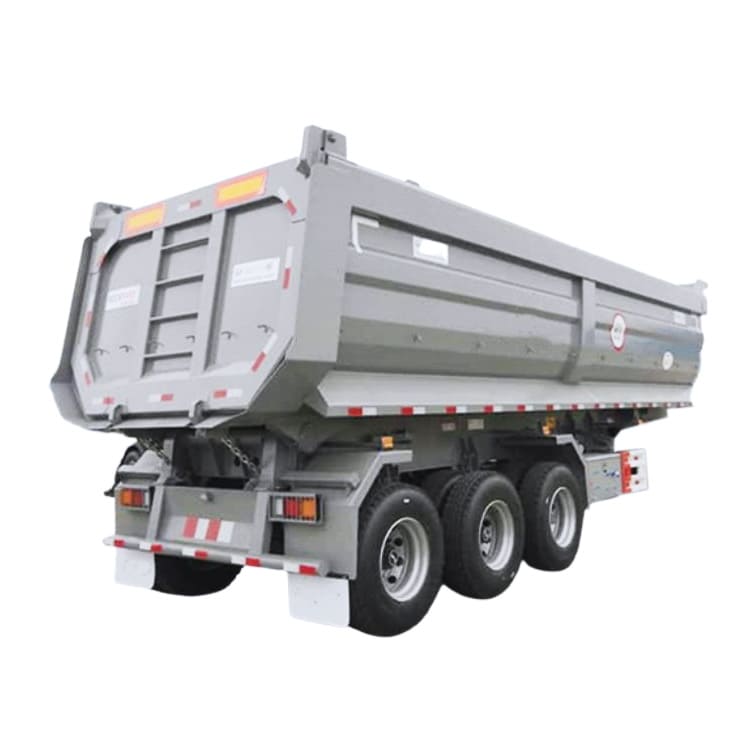

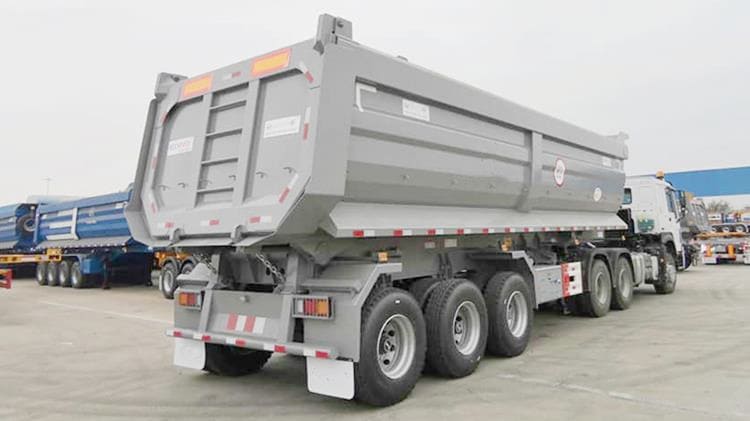

3 Axle Tractor Tipper Trailer

Tractor Tipper Trailer for Sale:

SINOTRUKPhilippines different types of 3 axle 38 ton tipper trailer for sale to meet your different needs, like 3 axles semi tipper trailer, 35 ton tractor tipper trailer, used 80 ton tipper trailer, 100 ton tipper trailer for sale, hydraulic tipper trailers.

In civil engineering, often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The 3 axle tipper trailer for sale carriage adopts rear-dump and side dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader.

3 Axle Tractor Tipper Trailer for Sale Near Me in Philippines Davao City

3 Axle Tractor Tipper Trailer for Sale Near Me in Philippines Davao City

3 Axle Tractor Tipper Trailer for Sale Near Me in Philippines Davao City

Tipper Trailer Advantage:

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for tipper semi trailer, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.

Specification of tractor tipper trailer:

Dimension: 11280mmx2495mm x3970mm ( inside dimension )

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Tare Weight (semi trailer): About 15600kg

Total volume(m³): 30-40m³ or less than 100tons

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

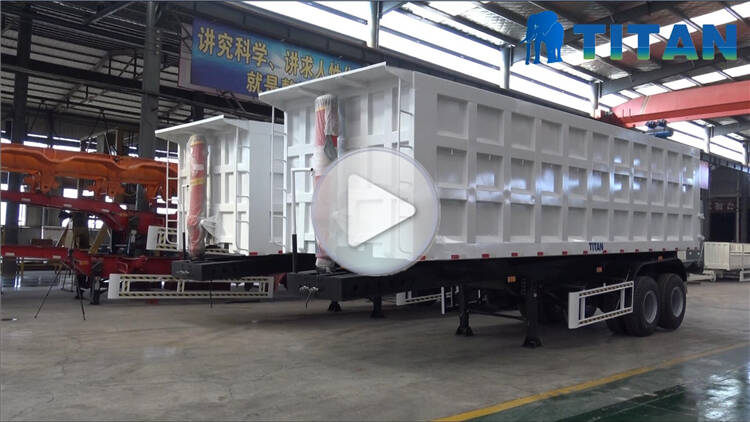

Through these videos, you can learn about different types of tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
