3 Axle Removable Gooseneck (RGN) Trailer

Removable Gooseneck (RGN) Trailer:

SINOTRUKPhilippines rgn trailer for sale can be removed, you can load your equipment from the front of the trailer. We can make the 2/3/4 axles removable gooseneck trailers, with the capacity of 60/80/100/120 ton.

To meet your transport needs and your local regulations, we can customize different configuration removable gooseneck (RGN) trailer for you.

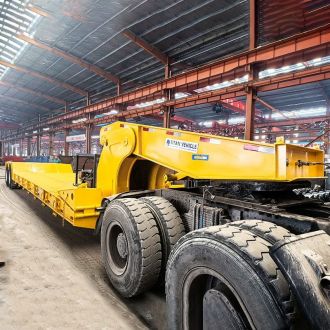

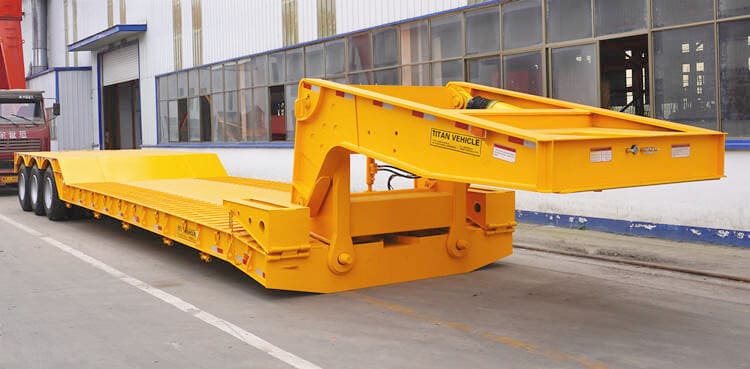

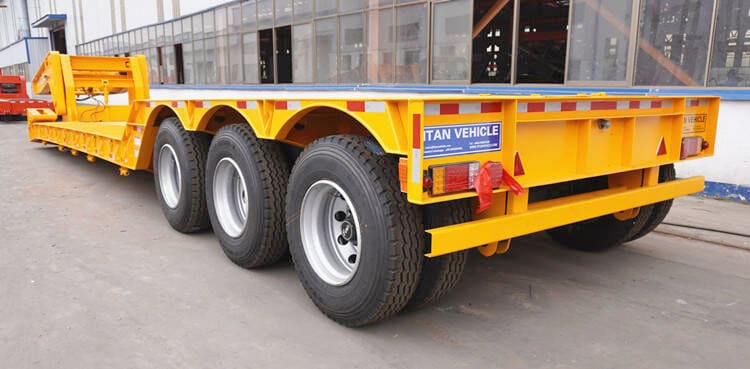

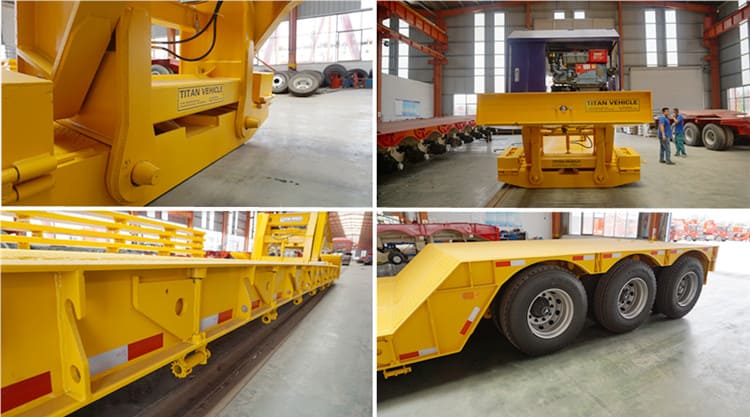

3 Axle 60 Ton Removable Gooseneck (RGN) Trailer for Sale in Zamboanga City

3 Axle 60 Ton Removable Gooseneck (RGN) Trailer for Sale in Zamboanga City

3 Axle 60 Ton Removable Gooseneck (RGN) Trailer for Sale in Zamboanga City

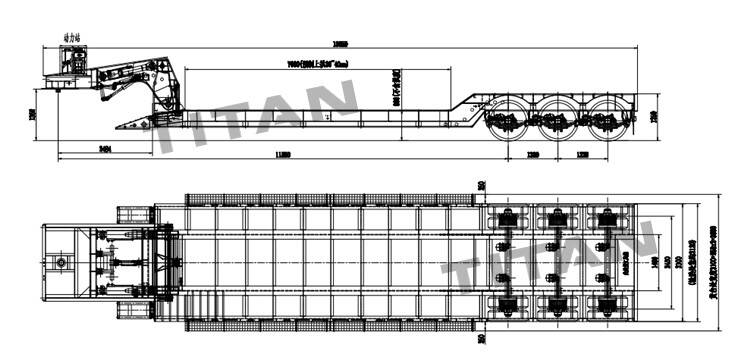

Specification of rgn trailer for sale:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 60-120T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

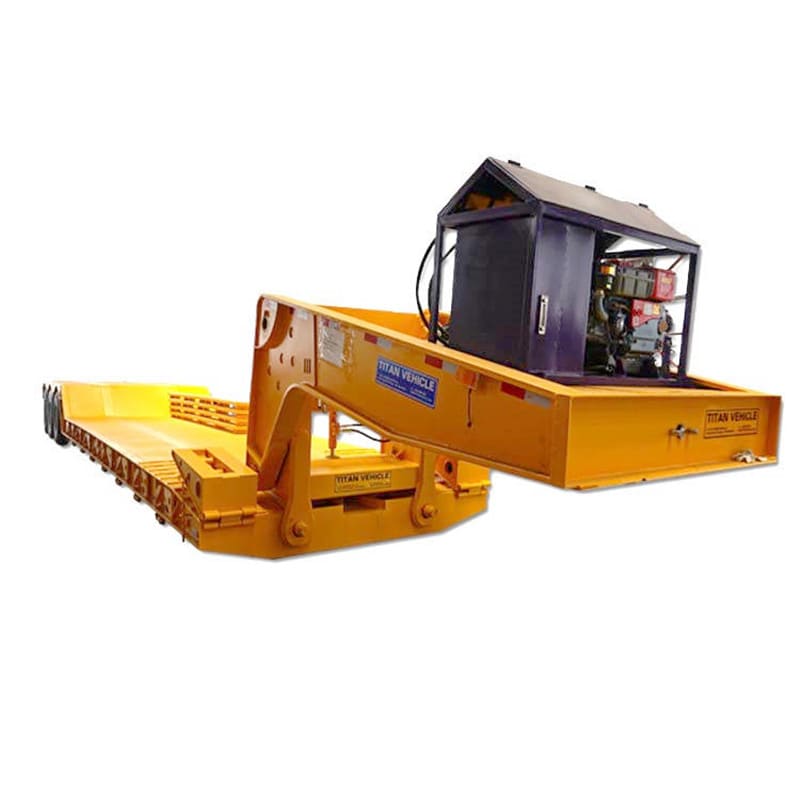

Hydraulic cylinder: 12KW diesel engine with hydraulic station

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Through the video, you can know different types of custom rgn trailer for sale, removable gooseneck (RGN) trailer, etc.

Welcome to leave your inquiry!

We will provide more details, price, catalog, drawing, videos for you!
