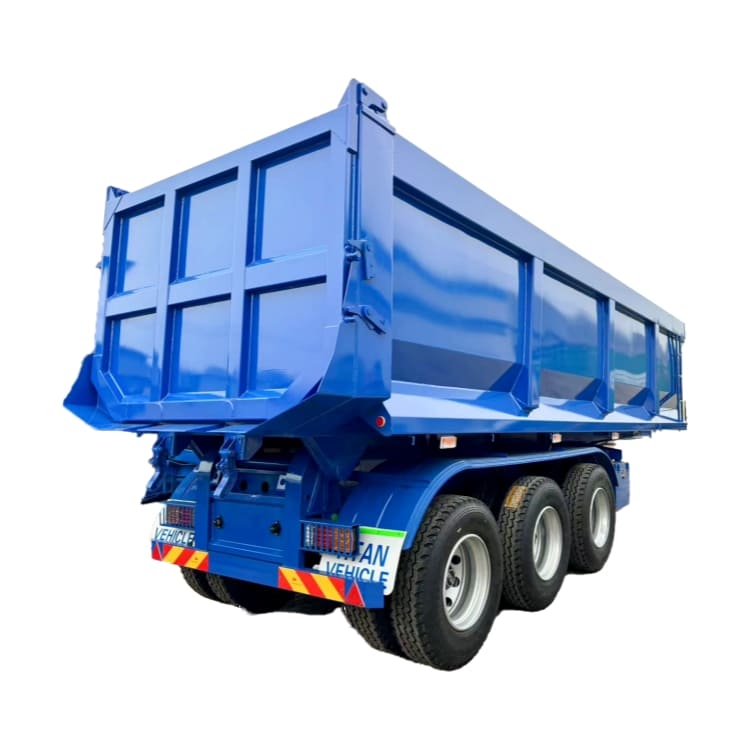

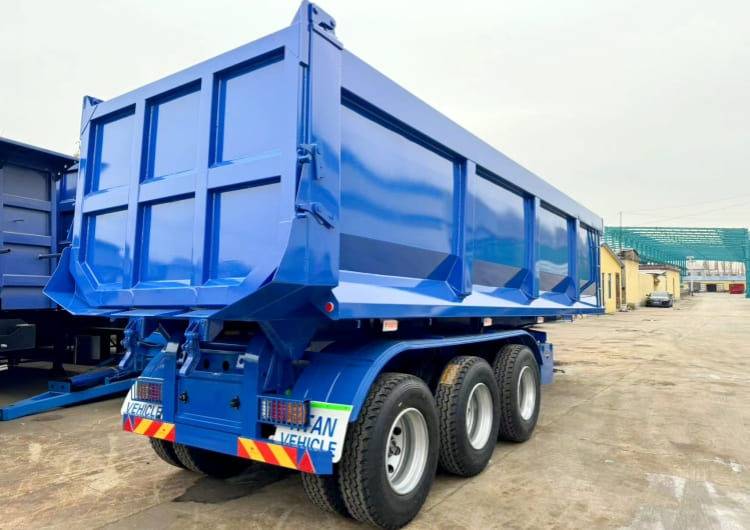

3 Axle Hydraulic Tipper Trailer

3 Axles Hydraulic Tipper Trailer Description:

3 Axle tipper trailer in Philippines is also called dump trucks, dumper trailer, side tipper, tipper semi trailer, Scrap dump Trailer.

In civil engineering, hydraulic tipper trailer in Philippines often works in conjunction with excavators, loaders, belt conveyors and other construction machinery. The 3 axle tipper trailer for sale in Philippines carriage adopts rear-dump and side -dump self-unloading methods, which improves the efficiency of the bulk cargo transport by the loader. The tipper trailer for sale carriage is inclined at a certain angle, so that the cargo in the carriage is unloaded. The power of the 3 axle tipper trailer in Philippines engine is used to complete the dumping mechanism.

Hydraulic Tipper Trailer for Sale in Philippines | 3 Axle Tipper Trailer in Philippines Batangas

Hydraulic Tipper Trailer for Sale in Philippines | 3 Axle Tipper Trailer in Philippines Batangas

Hydraulic Tipper Trailer for Sale in Philippines | 3 Axle Tipper Trailer in Philippines Batangas

Hydraulic Tipper Trailer Specification:

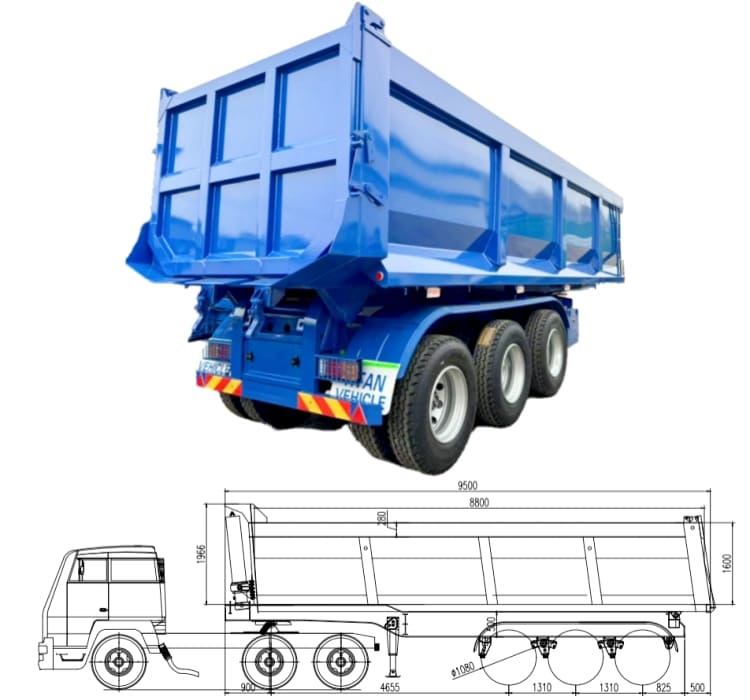

Overall dimension: 9500mm * 2500mm *3700mm

Volume: 35CBM

Axles: 3 axles

Tire: 12 units

Suspension: Heavy duty mechanical suspension

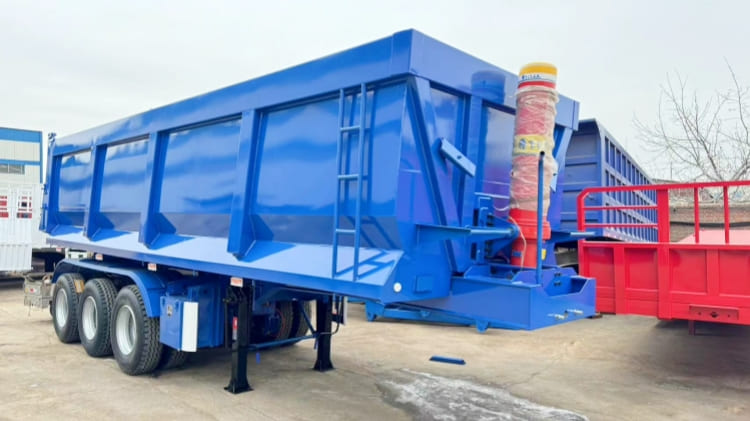

Tipping system: 196 hydraulic cylinder

King pin: 90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

Hydraulic Tipper Trailer Advantage:

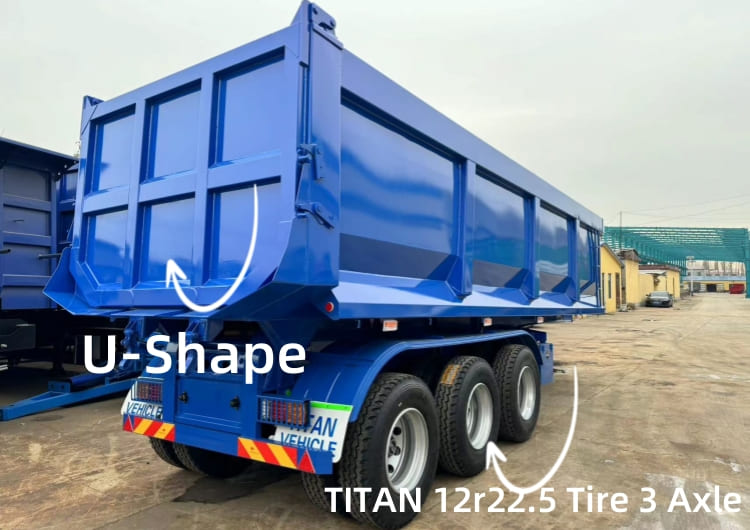

1. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

2. Double-plate main beam for 3 axle tipper trailer in Philippines, which has a stronger carrying capacity, it is not easy to damage.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. The leaf spring is widened and thickened, the shock absorption effect is good.

5. Strengthened Ribs, unique structure design to maximize the payload.
